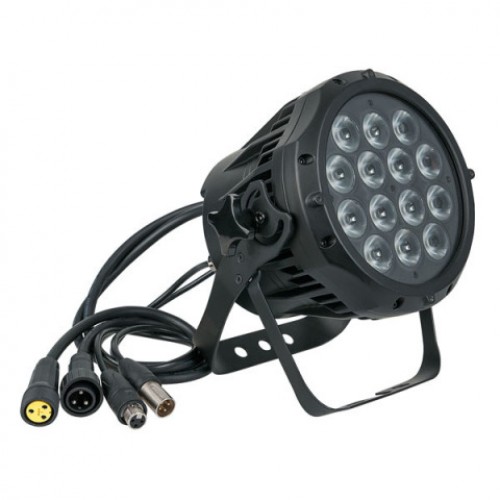

Spectral M800 MKII, IPX with Neutrik IPX XLR connectors

Spectral M800 MKII, IPX with Neutrik IPX XLR connectors
Spectral M800 MKII, IPX with Neutrik IPX XLR connectors Spectral M800 MKII, IPX with Neutrik IPX XLR connectors
Brand: Showtec
Product Code: HL43532
Availability: DISCONTINUED
Price: £218.00
Qty:     - OR -   Add to Wish List
Add to Compare
The Spectral M800MKII is the upgraded version of the extremely popular Spectral M800.
It now has been upgraded with 3 and 5 pole XLR connections (Tour version only) and 16 bit dimming. The Outdoor versions are available with dedicated IP data connectors and also the new Neutrik NC3-HDD IP XLR connectors.
The Spectral M800 MKII is a compact and rugged LED fixture which is designed to provide lighting designers with a tool that is both easy-to-use and 100% reliable in all environments. Offering perfect colour mixing in the near field without any RGB colour shadows, the custom over-sized lenses allow the fixture to capture a greater amount of light and project an output of over 800 lumen.

Specifications

Output:
Max. Flux: 1094lm
Peak Intensity: 10094cd

Light Source:
LED Qty.: 14 x RGB
Drive Current: 350mA
Color Range: 16.7 million additive RGB colors
with full saturation control

Electrical:
Input Voltage: AC100V~240V, 50/60Hz
Max. Power: 50W

Control:
On-board: Display for Auto and Custom control
Control Protocol: DMX512
Control Personality: Tour, TR16, ARC1, AR1.d, AR1.S, HSV
Optical System: Dimmer: 0-100%
Strobe: 0-20Hz
Optics: 16°

Physical:
Dimensions: 250 x 200 x 296 mm
Weight: 4,1 kg (indoor)/ 4,5 kg (outdoor)
Housing: Die-casting aluminum
Color: Black
Fixture Connection: DMX Neutrik NC3-HD in/out, dedicated power in/out
Cooling: Forced Convection
Operation Temperature: -40°C ~45°C (operating) / -20°C ~45°C (startup)
