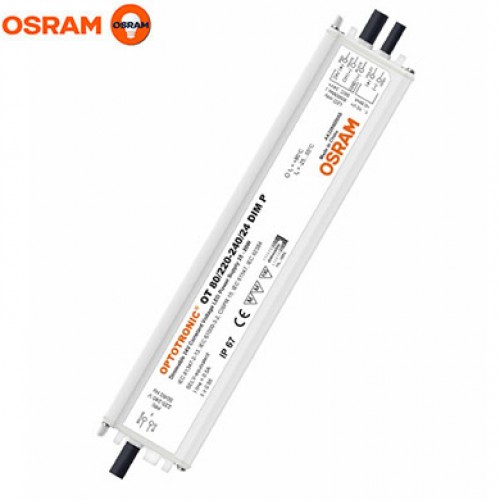

Osram 24v 80w Dimmable LED Driver IP67

Osram 24v 80w Dimmable LED Driver IP67
Brand: Osram
Product Code: CLEDOT8024DIMP
Availability: 2 - 3 Days
Price: £51.00
Qty:     - OR -   Add to Wish List
Add to Compare

Product benefits

Versatile 1-10 V window driver up to 80 W due to flexible output characteristic
Very high efficiency and reliability
High IP Protection (IP67)

Product features

Dimmable via fully isolated 1-10 V interface
Driver with output power range of up to 240 W

Areas of application

Suitable for indoor and outdoor SELV installations
Suitable for use in tight, flat luminaires or installation in suspended ceilings





Specifications

  • Ambient temperature range: -25-+55 C
  • Cable cross-section, input side: 1 sqmm
  • Cable cross-section, output side: 1.5 sqmm
  • Device power loss: 12 W
  • Dimmable: yes
  • Dimming range: 1-100 %
  • EAN: 4008321981677
  • ECG Efficiency: 87 %
  • ECG Lifetime: 50000 h
  • Galvanic isolation primary/secondary: 3.75 kV
  • Height: 34.0 mm
  • High surge protection: up to 3 kV (L-N)/6 kV (L/N-PE)
  • Input voltage: 198-264 V
  • Inrush current: 35 A
  • Length: 250.0 mm
  • Mains frequency: 50-60 Hz
  • Manufacturers Website:http://www.osram.com/osram_com/products/electronics/indoor-ecg-for-led-modules-and-dimmers/constant-voltage-24-v-dimmable/cv-power-supplies-with-1...10-v
  • Maximum number of ECG on circuit breaker 10 A: 7
  • Maximum number of ECG on circuit breaker 16 A: 10
  • Maximum temperature at tc test point: 80 C degrees
  • Maximum wiring length ECG/lamp: 10 m
  • No-load proof: Yes
  • Nominal current: 0.4 A
  • Nominal voltage: 220-240 V
  • Output power: 80 W
  • Output voltage: 24 V
  • Overheating protection: automatic reversible
  • Overload protection: Automatic reversible
  • Packaging: individual units in packs of 10
  • Partial load: 25-80 W
  • Power factor: 0.95/0.90
  • Priced per unit: available in any quantity
  • Short circuit protection: automatic reversible
  • Suitable for fixtures with prot. class: II
  • Surge capability (L-N): 3 kV
  • Type of protection: IP67
  • Width: 50.0 mm
